Pipelines settings

To reach the pipelines settings navigate to your project's Settings ➔ CI/CD.

The following settings can be configured per project.

Git strategy

With Git strategy, you can choose the default way your repository is fetched from GitLab in a job.

There are two options:

  • Using git clone which is slower since it clones the repository from scratch for every job, ensuring that the project workspace is always pristine.
  • Using git fetch which is faster as it re-uses the project workspace (falling back to clone if it doesn't exist).

The default Git strategy can be overridden by the GIT_STRATEGY variable in .gitlab-ci.yml.

Timeout

Timeout defines the maximum amount of time in minutes that a job is able run. The default value is 60 minutes. Decrease the time limit if you want to impose a hard limit on your jobs' running time or increase it otherwise. In any case, if the job surpasses the threshold, it is marked as failed.

Timeout overriding on Runner level

Project defined timeout (either specific timeout set by user or the default 60 minutes timeout) may be overridden on Runner level.

Custom CI config path

By default we look for the .gitlab-ci.yml file in the project's root directory. If you require a different location within the repository, you can set a custom filepath that will be used to lookup the config file, this filepath should be relative to the root.

Here are some valid examples:

  • .gitlab-ci.yml
  • .my-custom-file.yml
  • my/path/.gitlab-ci.yml
  • my/path/.my-custom-file.yml

Test coverage parsing

If you use test coverage in your code, GitLab can capture its output in the job log using a regular expression. In the pipelines settings, search for the "Test coverage parsing" section.

Pipelines settings test coverage

Leave blank if you want to disable it or enter a ruby regular expression. You can use http://rubular.com to test your regex.

If the pipeline succeeds, the coverage is shown in the merge request widget and in the jobs table.

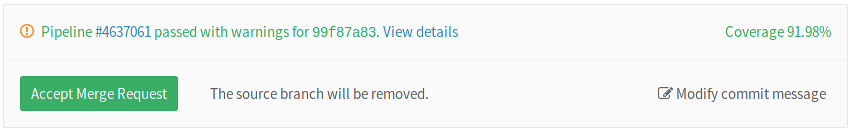

MR widget coverage

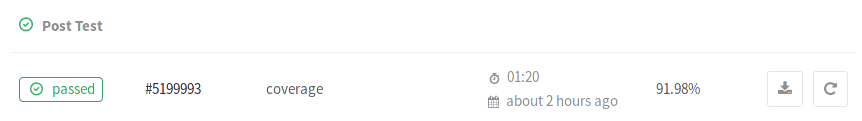

Build status coverage

A few examples of known coverage tools for a variety of languages can be found in the pipelines settings page.

Visibility of pipelines

Access to pipelines and job details (including output of logs and artifacts) is checked against your current user access level and the Public pipelines project setting under your project's Settings > CI/CD > General pipelines settings.

If Public pipelines is enabled (default):

  • for public projects, anyone can view the pipelines and access the job details (output logs and artifacts)
  • for internal projects, any logged in user can view the pipelines and access the job details (output logs and artifacts)
  • for private projects, any member (guest or higher) can view the pipelines and access the job details (output logs and artifacts)

If Public pipelines is disabled:

  • for public projects, anyone can view the pipelines, but only members (reporter or higher) can access the job details (output logs and artifacts)
  • for internal projects, any logged in user can view the pipelines, but only members (reporter or higher) can access the job details (output logs and artifacts)
  • for private projects, only members (reporter or higher) can view the pipelines and access the job details (output logs and artifacts)

Auto-cancel pending pipelines

Introduced in GitLab 9.1.

If you want to auto-cancel all pending non-HEAD pipelines on branch, when new pipeline will be created (after your git push or manually from UI), check Auto-cancel pending pipelines checkbox and save the changes.

Pipeline Badges

In the pipelines settings page you can find pipeline status and test coverage badges for your project. The latest successful pipeline will be used to read the pipeline status and test coverage values.

Visit the pipelines settings page in your project to see the exact link to your badges, as well as ways to embed the badge image in your HTML or Markdown pages.

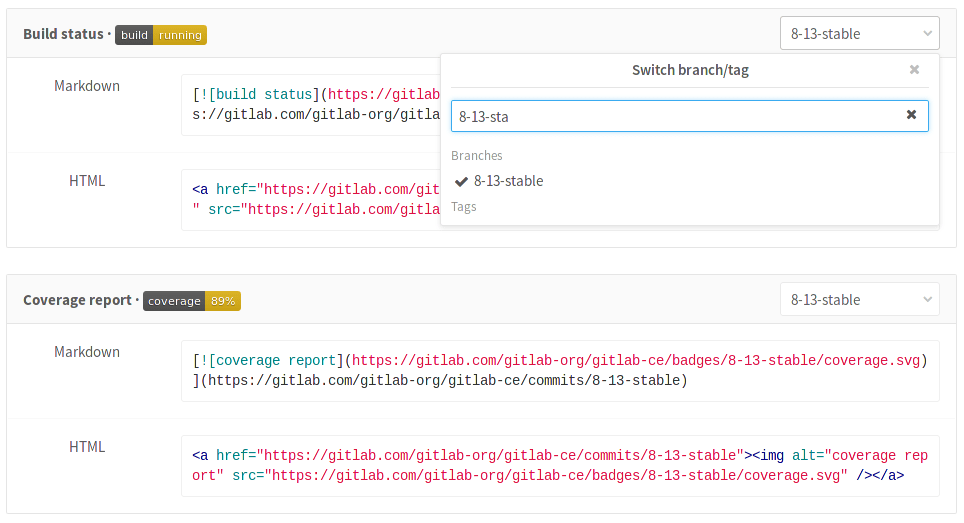

Pipelines badges

Pipeline status badge

Depending on the status of your job, a badge can have the following values:

  • pending
  • running
  • passed
  • failed
  • skipped
  • canceled
  • unknown

You can access a pipeline status badge image using the following link:

https://example.gitlab.com/<namespace>/<project>/badges/<branch>/build.svg

Test coverage report badge

GitLab makes it possible to define the regular expression for coverage report, that each job log will be matched against. This means that each job in the pipeline can have the test coverage percentage value defined.

The test coverage badge can be accessed using following link:

https://example.gitlab.com/<namespace>/<project>/badges/<branch>/coverage.svg

If you would like to get the coverage report from a specific job, you can add the job=coverage_job_name parameter to the URL. For example, the following Markdown code will embed the test coverage report badge of the coverage job into your README.md:

![coverage](https://gitlab.com/gitlab-org/gitlab-ce/badges/master/coverage.svg?job=coverage)
