Subgroups

Notes:

With subgroups (aka nested groups or hierarchical groups) you can have up to 20 levels of nested groups, which among other things can help you to:

  • Separate internal / external organizations. Since every group can have its own visibility level, you are able to host groups for different purposes under the same umbrella.
  • Organize large projects. For large projects, subgroups makes it potentially easier to separate permissions on parts of the source code.
  • Make it easier to manage people and control visibility. Give people different permissions depending on their group membership.

Database Requirements

Nested groups are only supported when you use PostgreSQL. Supporting nested groups on MySQL in an efficient way is not possible due to MySQL's limitations. See the following links for more information:

Overview

A group can have many subgroups inside it, and at the same time a group can have only 1 parent group. It resembles a directory behavior or a nested items list:

  • Group 1
    • Group 1.1
    • Group 1.2
      • Group 1.2.1
      • Group 1.2.2
        • Group 1.2.2.1

In a real world example, imagine maintaining a GNU/Linux distribution with the first group being the name of the distro and subsequent groups split like:

  • Organization Group - GNU/Linux distro
    • Category Subgroup - Packages
      • (project) Package01
      • (project) Package02
    • Category Subgroup - Software
      • (project) Core
      • (project) CLI
      • (project) Android app
      • (project) iOS app
    • Category Subgroup - Infra tools
      • (project) Ansible playbooks

Another example of GitLab as a company would be the following:

  • Organization Group - GitLab
    • Category Subgroup - Marketing
      • (project) Design
      • (project) General
    • Category Subgroup - Software
      • (project) GitLab CE
      • (project) GitLab EE
      • (project) Omnibus GitLab
      • (project) GitLab Runner
      • (project) GitLab Pages daemon
    • Category Subgroup - Infra tools
      • (project) Chef cookbooks
    • Category Subgroup - Executive team

The maximum nested groups a group can have, including the first one in the hierarchy, is 21.

Things like transferring or importing a project inside nested groups, work like when performing these actions the traditional way with the group/project structure.

Creating a subgroup

Notes:

  • You need to be an Owner of a group in order to be able to create a subgroup. For more information check the permissions table.
  • For a list of words that are not allowed to be used as group names see the reserved names.
  • Users can always create subgroups if they are explicitly added as an Owner to a parent group even if group creation is disabled by an administrator in their settings.

To create a subgroup:

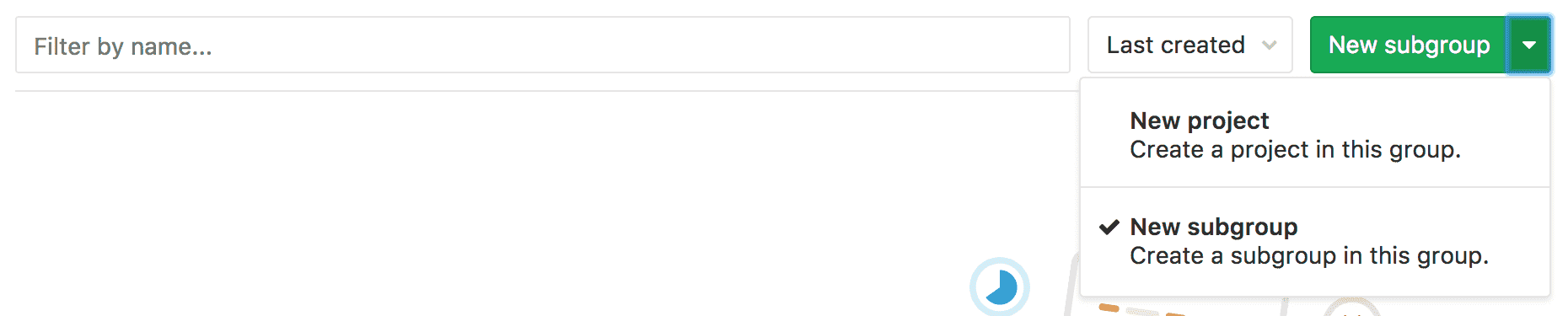

  1. In the group's dashboard expand the New project split button, select New subgroup and click the New subgroup button.

    Subgroups page

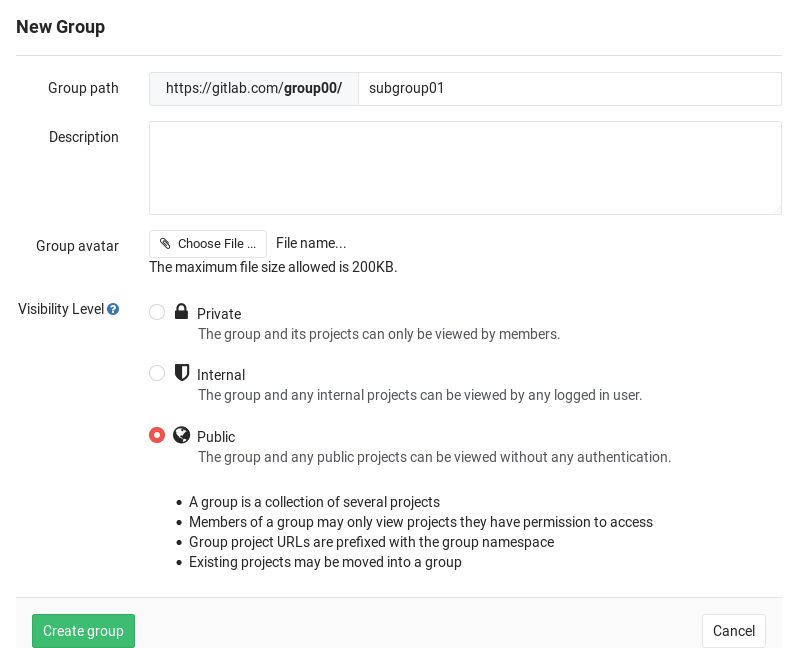

  2. Create a new group like you would normally do. Notice that the parent group namespace is fixed under Group path. The visibility level can differ from the parent group.

    Subgroups page

  3. Click the Create group button and you will be taken to the new group's dashboard page.

Follow the same process to create any subsequent groups.

Membership

When you add a member to a subgroup, they inherit the membership and permission level from the parent group. This model allows access to nested groups if you have membership in one of its parents.

The group permissions for a member can be changed only by Owners and only on the Members page of the group the member was added.

You can tell if a member has inherited the permissions from a parent group by looking at the group's Members page.

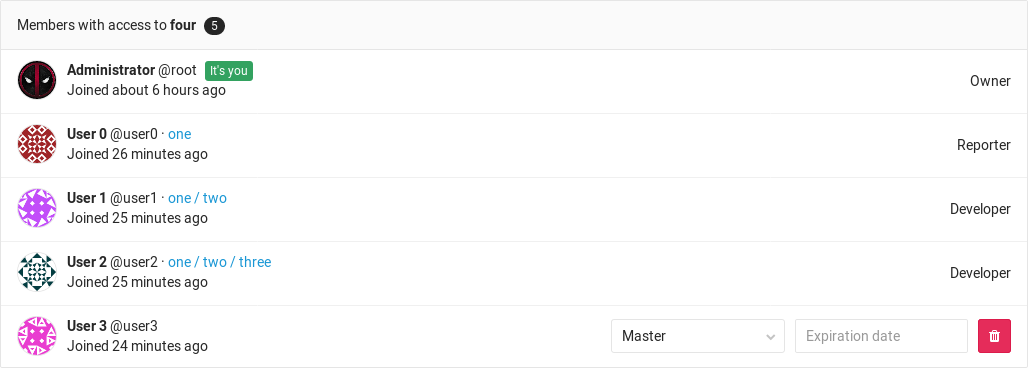

Group members page

From the image above, we can deduct the following things:

  • There are 5 members that have access to the group four
  • User0 is a Reporter and has inherited their permissions from group one which is above the hierarchy of group four
  • User1 is a Developer and has inherited their permissions from group one/two which is above the hierarchy of group four
  • User2 is a Developer and has inherited their permissions from group one/two/three which is above the hierarchy of group four
  • For User3 there is no indication of a parent group, therefore they belong to group four, the one we're inspecting
  • Administrator is the Owner and member of all subgroups and for that reason, same as User3, there is no indication of an ancestor group

Overriding the ancestor group membership

Note: You need to be an Owner of a group in order to be able to add members to it.

To override a user's membership of an ancestor group (the first group they were added to), simply add the user in the new subgroup again, but with different permissions.

For example, if User0 was first added to group group-1/group-1-1 with Developer permissions, then they will inherit those permissions in every other subgroup of group-1/group-1-1. To give them Maintainer access to group-1/group-1-1/group1-1-1, you would add them again in that group as Maintainer. Removing them from that group, the permissions will fallback to those of the ancestor group.

Mentioning subgroups

Mentioning groups (@group) in issues, commits and merge requests, would notify all members of that group. Now with subgroups, there is a more granular support if you want to split your group's structure. Mentioning works as before and you can choose the group of people to be notified.

Mentioning subgroups

Limitations

Here's a list of what you can't do with subgroups:

  • GitLab Pages are not currently working for projects hosted under a subgroup. That means that only projects hosted under the first parent group will work.
  • Group level labels don't work in subgroups / sub projects
  • It is not possible to share a project with a group that's an ancestor of the group the project is in. That means you can only share as you walk down the hierarchy. For example, group/subgroup01/project cannot be shared with group, but can be shared with group/subgroup02 or group/subgroup01/subgroup03.
